Cable tray boxes are specified by type, material, dimensions, load capacity, and compliance with electrical standards to ensure safe and efficient cable management.

Types of Cable Tray Boxes

Cable tray boxes come in various types depending on application and cable protection needs:

• Ladder Tray: Open design with rungs, ideal for heavy power cables and long runs, providing excellent ventilation and easy cable access .
• Solid Bottom Tray: Fully enclosed, used where heat buildup is minimal and protection from dust or debris is required .
• Ventilated Tray: Perforated or slotted bottom for heat dissipation while maintaining cable support .

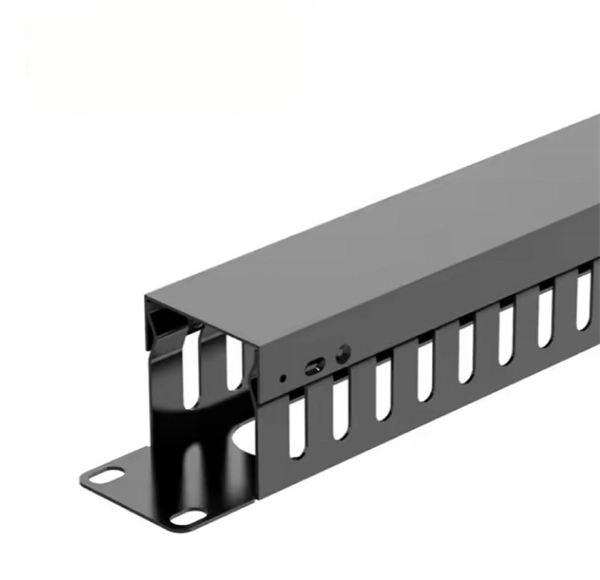

• Channel Tray: Smaller, often used for instrumentation and control cables, available in solid or ventilated designs .

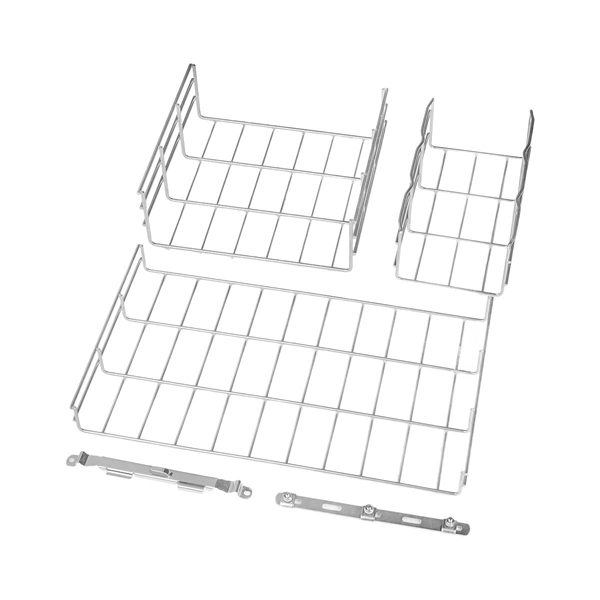

• Wire Mesh Tray: Lightweight, flexible, and suitable for light cabling in data centers or industrial environments .

Materials and Finishes

Cable tray boxes are manufactured from materials chosen for strength, corrosion resistance, and environmental suitability:

• Steel: Pre-galvanized or hot-dip galvanized for general industrial use .
• Stainless Steel (AISI 316L): High corrosion resistance, suitable for harsh or marine environments .
• Aluminum: Lightweight, corrosion-resistant, and easily formable, ideal for indoor and outdoor applications .
• Fiberglass Reinforced Plastic (FRP): High resistance to corrosion and chemicals, with a favorable strength-to-weight ratio .

Dimensions

Cable tray boxes are standardized to ensure proper cable fill, heat dissipation, and structural integrity:

• Width: Nominal inside usable width ranges to accommodate small control circuits to large power runs .
• Depth (Side Rail Height): Controls vertical stacking capacity and affects NEC fill compliance and heat dissipation .
• Length: Typically 10–12 feet for standard spans, with long or extra-long spans up to 40 feet for outdoor or road-crossing installations .
• Material Thickness: Selected based on load requirements and environmental conditions .

Load Capacity and Support

• Cable tray boxes are rated by load class, which defines the maximum cable and environmental load they can support .
• Support spans vary by tray type: short spans (6–8 feet), intermediate spans (10–12 feet), long spans (14–20 feet), and extra-long spans (20–40 feet) for outdoor applications .
• Splice plates connect tray sections and are critical for maintaining structural integrity, especially in long-span installations .

Compliance and Standards

• Cable tray boxes must comply with NEC, NEMA, and IEC standards for safety, electrical performance, and mechanical strength .
• CE marking or UL certification indicates compliance with relevant national or international standards .
• Proper selection ensures safe operation, prevents overheating, and maintains reliability for power, control, and data cabling .

Additional Considerations

• Covers: Solid or ventilated covers protect cables from dust, debris, and electromagnetic interference .
• Thermal Expansion: Design must account for expansion and contraction in outdoor or high-temperature environments .
• Corrosion Protection: Material choice and finish should match environmental exposure to prevent degradation over time . By considering type, material, dimensions, load capacity, and compliance, cable tray boxes can be selected to provide safe, efficient, and code-compliant cable management for industrial, commercial, and data center applications .
