Cable tray slippage occurs when cables move or slide within a tray, potentially causing disorganization, damage, or safety hazards, and can be mitigated through proper tray design and specialized products.

Causes of Cable Tray Slippage

Cable slippage typically happens due to insufficient support, improper tray selection, or inadequate securing methods. Factors include:

• Tray type and design: Solid-bottom trays may allow cables to slide more easily, while perforated or wire mesh trays provide better grip and airflow .
• Cable load and weight: Overloading a tray beyond its rated capacity can increase the risk of slippage .
• Tray slope or inclination: Cables can move downhill if the tray is installed at an angle without proper restraints .
• Thermal expansion and contraction: Temperature changes can cause trays and cables to expand or contract, leading to movement .

Risks of Slippage

Uncontrolled cable movement can result in:

• Tangled or disorganized cables, making maintenance difficult .
• Increased wear or damage to cable insulation, potentially causing electrical faults .
• Safety hazards for personnel due to exposed or loose cables .

Solutions to Prevent Slippage

Several strategies can minimize or eliminate cable slippage:

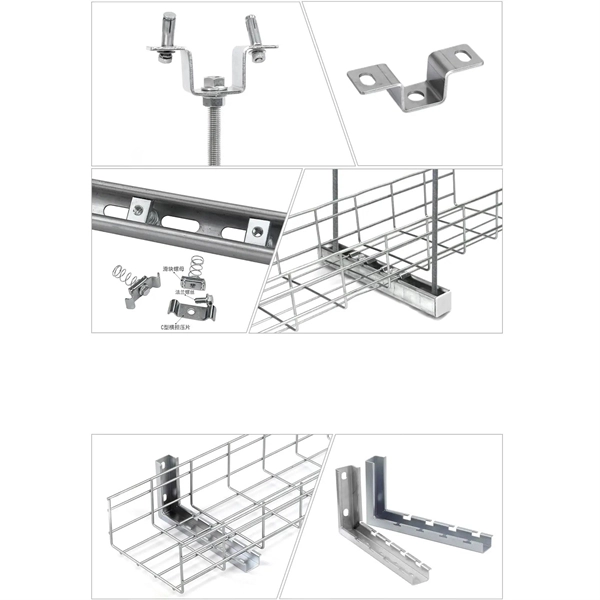

• Perforated or wire mesh trays: These designs hold cables securely while allowing ventilation, reducing heat buildup and slippage. Perforated trays have been shown to reduce failures by up to 78% .
• Cable ties, clamps, or separators: Using these accessories at regular intervals keeps cables in place and organized .
• Proper tray selection: Choose trays suitable for the cable type, weight, and environment, including ladder, basket, or single-rail trays .
• Correct installation practices: Ensure trays are level, adequately supported, and comply with load ratings and spacing guidelines .
• Thermal and mechanical considerations: Account for expansion, contraction, and vibration in industrial environments to prevent movement .

Best Practices

• Maintain recommended rung spacing (typically 6–9 inches) to support cables effectively .
• Use segregation for different cable types to prevent tangling and interference .
• Regularly inspect trays for loose or damaged cables and adjust securing methods as needed . By combining proper tray selection, secure fastening, and innovative designs like perforated trays, cable slippage can be effectively minimized, ensuring a safer, more organized, and reliable cable management system .
