A fiber optic differential protection device channel is a high-speed, secure communication link used to transmit differential current data between line terminals for fast and selective protection of power transmission lines.

Overview

Fiber optic channels in differential protection devices are primarily used to connect protection relays at both ends of a transmission line, enabling real-time comparison of current measurements. This ensures fast and selective detection of internal faults, minimizing the risk of unnecessary tripping of the power system . Fiber optics are preferred due to their high bandwidth, immunity to electromagnetic interference, and secure data transmission.

Technical Implementation

• Communication Protocols: Fiber optic channels often use 100Base-Fx Ethernet or serial HDLC-based channels. Ethernet implementations follow IEC61850-9-2LE standards, with a required bandwidth of approximately 1.5 Mbit/s. VLANs, multicast addresses, and priority settings are used to manage time-critical data frames, especially in networks with managed switches .

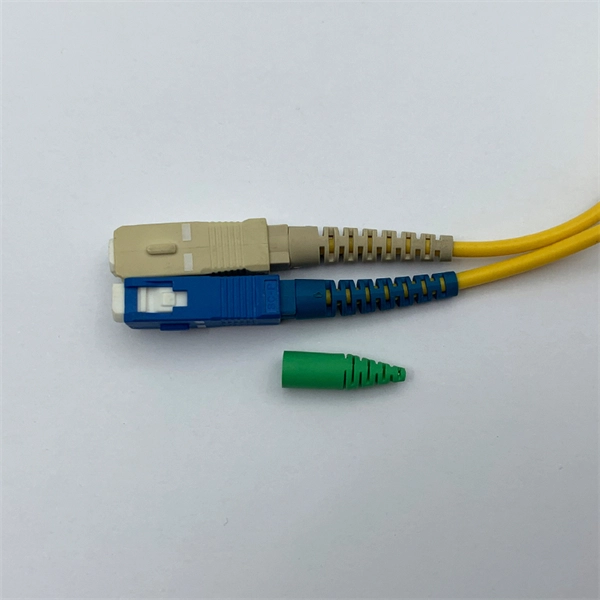

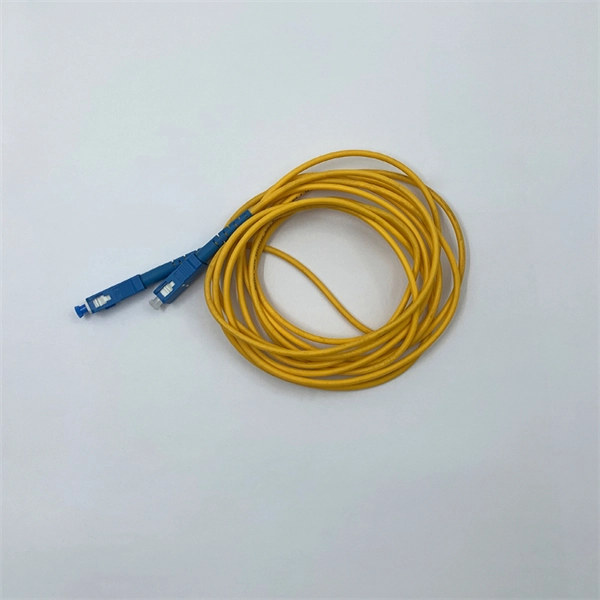

• Fiber Type and Wavelength: Single-mode fibers operating at 1550 nm are commonly used for long-haul applications up to 100–120 km with line attenuation around 35 dB .
• Redundancy and Hot Standby: Many systems implement parallel communication channels to enable hot standby operation, ensuring continuous protection even if one channel fails .
• Integration with Protection Functions: Modules such as COM1Dir (communication module) and DIFF87L (line differential function) are configured in the relay to handle fiber optic communication .

Synchronization and Hybrid Systems

Fiber optic channels can be used in combination with external clocks or 5G channels for synchronization. If the external clock fails, the system can switch to the fiber optic channel for timing, improving channel diversity and adaptability in differential protection . This hybrid approach enhances reliability and reduces dependency on a single communication medium.

Advantages

• Fast and selective protection: Fiber optics allow near-instantaneous comparison of currents at both ends of a line .
• High security and reliability: Immune to electromagnetic interference and suitable for high-voltage environments .
• Integration with automation systems: Supports logging, fault analysis, and remote monitoring .
• Scalability: Can be combined with other communication technologies like 5G for enhanced redundancy .

Practical Applications

Fiber optic differential channels are widely used in overhead lines, underground cables, and high-voltage substations. Devices like EuroProt+ and MiCOM P543-P546 relays utilize fiber optic channels to provide phase-segregated current differential protection, neutral current differential protection, and subcycle distance protection for comprehensive fault coverage . In summary, a fiber optic differential protection device channel is a critical component in modern power system protection, offering high-speed, reliable, and secure communication to ensure fast fault detection and system stability.
