Optical fibers consist of a core, cladding, protective coatings, and supporting elements, while a complete fiber optic system also includes transmitters, receivers, connectors, and amplifiers.

Physical Structure of Optical Fiber

Core: The core is the central part of the fiber where light is transmitted. It is made of highly transparent glass or plastic and has a higher refractive index than the surrounding cladding to ensure total internal reflection. Core diameters vary: single-mode fibers typically have cores of 8–10 µm, while multi-mode fibers range from 50–62.5 µm . Cladding: Surrounding the core, the cladding has a lower refractive index to contain light within the core. It ensures efficient light propagation and minimizes signal loss . Buffer Coating: A protective layer, often made of plastic or silicon rubber, shields the fiber from physical damage and environmental factors. The total fiber diameter after coating is usually 250–300 µm . Strengthening Fibers: These fibers, often made of aramid yarn or similar materials, provide tensile strength to prevent breakage during installation or handling . Cable Jacket: The outermost layer protects the fiber from mechanical damage, moisture, and chemical exposure, ensuring durability in various environments .

Fiber Optic System Components

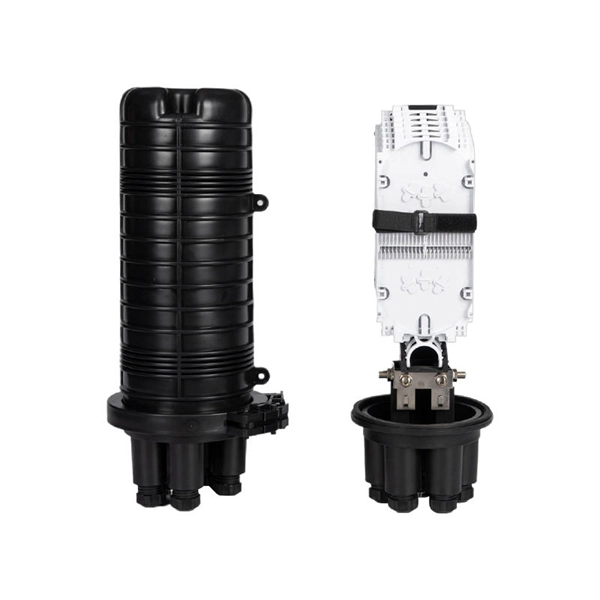

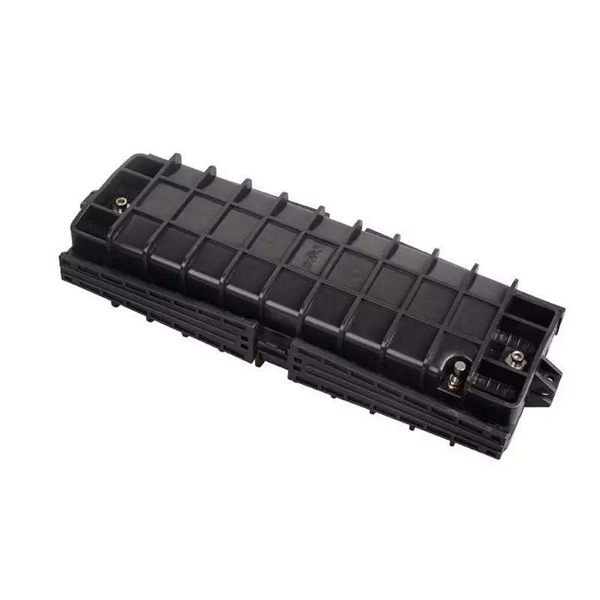

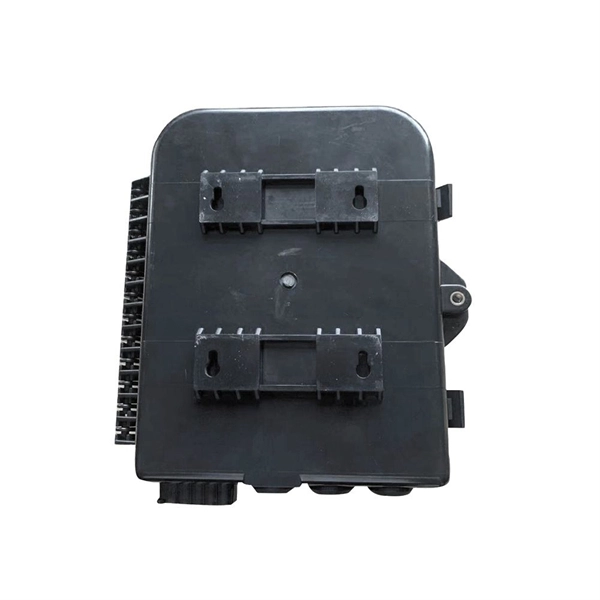

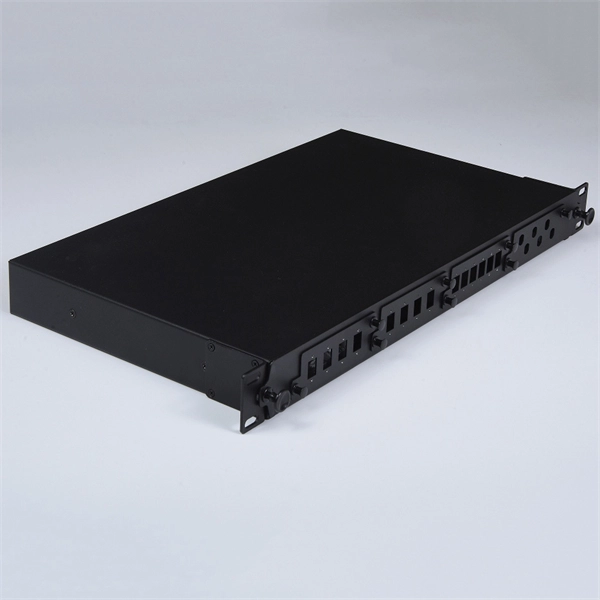

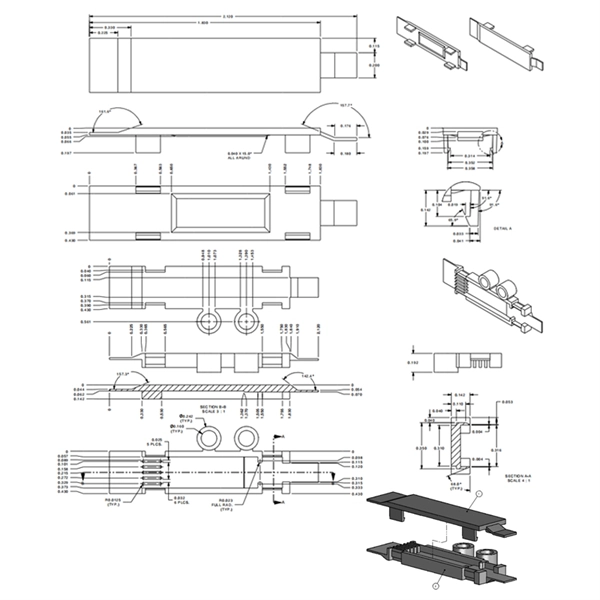

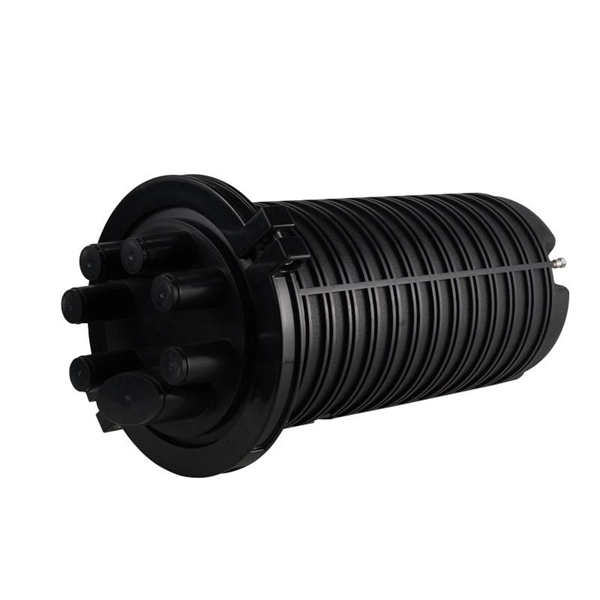

Light Source/Transmitter: Converts electrical signals into optical signals. Common sources include laser diodes for single-mode fibers and LEDs for multi-mode fibers. The transmitter may include modulators and driver circuits to control signal intensity and frequency . Optical Receiver: Converts light signals back into electrical signals using a photodetector and amplifier, enabling the receiving device to process the transmitted data . Connectors and Splices: Connectors allow temporary or semi-permanent joining of fibers, while splices (fusion or mechanical) provide permanent low-loss connections between fiber ends . Amplifiers and Splitters: Optical amplifiers boost signal strength over long distances, and splitters divide light signals to multiple paths for distribution in networks .

Types of Optical Fiber

Single-Mode Fiber: Carries a single light ray, suitable for long-distance, high-bandwidth communication, typically operating at 1310 or 1550 nm . Multi-Mode Fiber: Supports multiple light rays or modes, ideal for shorter distances, operating at 850 or 1300 nm. Variants include step-index and graded-index fibers, differing in core refractive index profiles . These components together enable efficient, high-speed data transmission over long distances with minimal loss, forming the backbone of modern telecommunications and networking systems .
