Curved elbows for cable trays are fabricated using precise bending, cutting, and assembly techniques to ensure smooth cable routing and structural integrity.

Materials and Selection

Cable tray elbows can be made from stainless steel, galvanized steel, aluminum, or fiberglass-reinforced composites, depending on the environment and load requirements . Stainless steel and aluminum are preferred for corrosion resistance, especially in offshore or industrial applications, while fiberglass offers a lightweight alternative with high chemical resistance . The choice of material also affects the bending method and welding requirements.

Design Considerations

Curved elbows must accommodate the minimum bend radius of the cables to prevent damage and maintain signal integrity . Typical ladder-type trays use rungs spaced 150–230 mm apart, while duct-type trays may be solid or ventilated. Elbows can be designed for horizontal, vertical, or multi-angle bends, often ranging from 10° to 90° . For vertical curved surfaces, trapezoidal side rails are used to form the elbow, allowing multiple connections to achieve the desired angle .

Fabrication Process

1. Measurement and Layout: Determine the required bend angle and radius based on the cable tray route. Mark the metal sheet or tray section accordingly.
2. Cutting: Use shears or plasma cutting to shape the side rails and rungs. For trapezoidal designs, ensure the upper side is slightly longer than the lower side to form the correct angle when assembled .
3. Bending: Employ a press brake, rolling machine, or manual bending tools to achieve the curved shape. For complex multi-angle elbows, multiple bends may be combined .
4. Assembly: Weld or bolt the side rails and rungs together. Ensure alignment and maintain structural integrity. For duct-type trays, ensure the top cover or open design is properly fitted.
5. Finishing: Smooth edges, remove burrs, and apply protective coatings if necessary. Inspect for dimensional accuracy and proper angle formation .

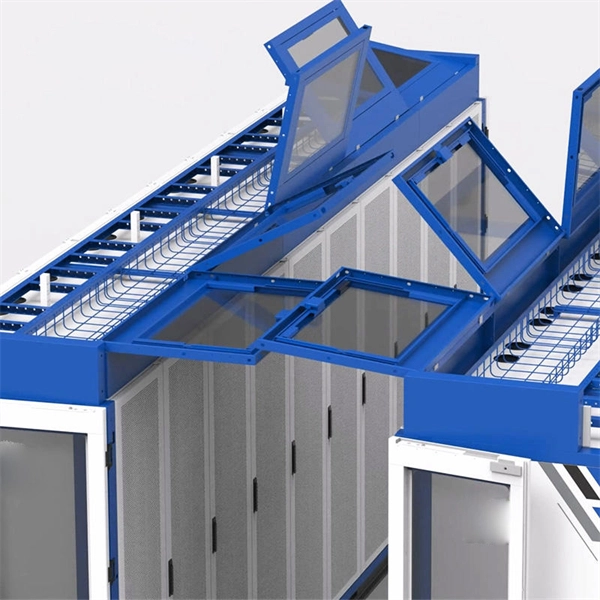

Installation Tips

• Ensure elbows are aligned with the main tray to prevent cable stress.
• Maintain consistent spacing between rungs or supports to support cable weight.

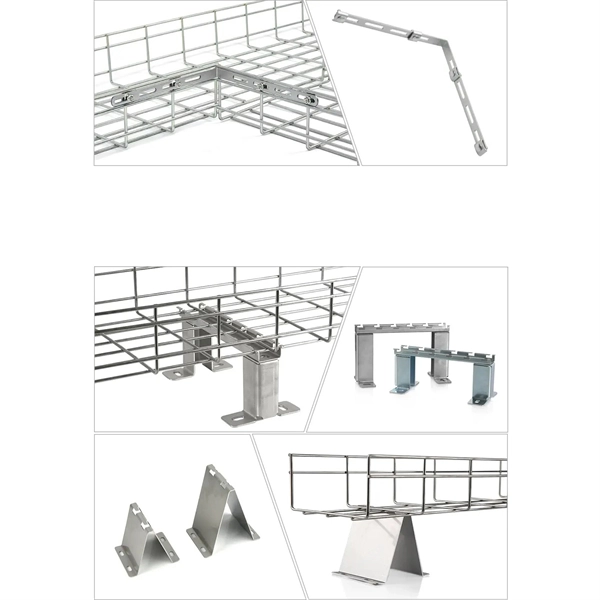

• Use brackets and fittings to secure elbows in all configurations, especially in environments with vibration or movement, such as ships or offshore platforms .
• Verify that the bend radius meets cable specifications to avoid insulation damage or signal interference .

Software and Modeling

For precise fabrication, MEP software like Autodesk Revit can be used to model elbows and generate fabrication drawings. Families for horizontal and vertical elbows can be customized to match the required bend angles and tray types . This ensures accurate cutting and assembly during production. By following these material, design, and fabrication guidelines, curved elbows can be efficiently produced to provide safe, durable, and aesthetically organized cable routing in industrial, marine, or commercial installations.
